Yamaha RX8
Digital Rhythm Programmer

The RX8 is a typical PCM-based, late '80s digital drum machine - that followed the footsteps of the granddaddy RX5.  The RX8 features 43 PCM voices in its ROM, sampled at an impressive - for the time - 16bit, and a generous amount of buttons for programming it.

There are 12 rubberized pads on the front panel, and even though they don't respond to velocity, they are pleasantly comfortably to play.  There are also some (basic) effects, such as detune, expand, and reverse.

The character of this drum machine is typical of the 1980s, with the obligatory "big" snares, DX7 brass hits and slap bass, quirky percussion, "cannon" toms, etc.

Yamaha RX8 audio demos in mp3:

These are the two factory song demos on the Yamaha RX8:

00 PIRATES. ....... a very happy tune, expertly programmed

01 DOWNBEAT .... powerful number, with cool bass action

And this is the factory pattern demo of a few classic pop, rock and Latin patterns obtainable on this machine:

00 SAMPLPTN ..... a selection of powerful rock, pop, Latin and funk patterns.



Here's a list of all 43 waveforms available in the RX8's ROM:

Name Yamaha Description My description
BD1 Bass drum
BD2 Bass drum
BD3 Bass drum
BD4 Bass drum
BD5 Bass drum
SD1 Snare drum
SD2 Snare drum
SD3 Snare drum
SD4 Snare drum
SD5 Snare drum
Rim Snare Rimshot
Tom 1 1st tom
Tom 2 2nd tom
Tom 3 3rd tom
Tom 4 4th tom
Tom 5 5th tom
Tom 6 6th tom
Tom 7 7th tom
Tom 8 8th tom
HHclos Closed hi-hat
HHopen Open hi-hat
Cup Ride cymbal (bell/cup)
Edge Ride cymbal (edge)
Crash Crash cymbal
Bass 1 Bass guitar (slap)
Bass 2 Bass guitar (pull)
Marimb DX marimba voice
DXorch DX orchestral hit
Claps Handclaps
Cowbel Cowbell
Tambrn Tambourine
Shaker Shaker
CgaHMT High muted conga
CgaHOP High open conga
Cga LO Low conga
Bgo HI High bongo
Bgo LO Low bongo
TimblH High timbale
TimblL Low timbale
Ago HI High agogo
Ago LO Low agogo
Cuica Cuica
Whstl Whistle




Yamaha RX8 drum samples (44.1MHz, stereo, .wav files)

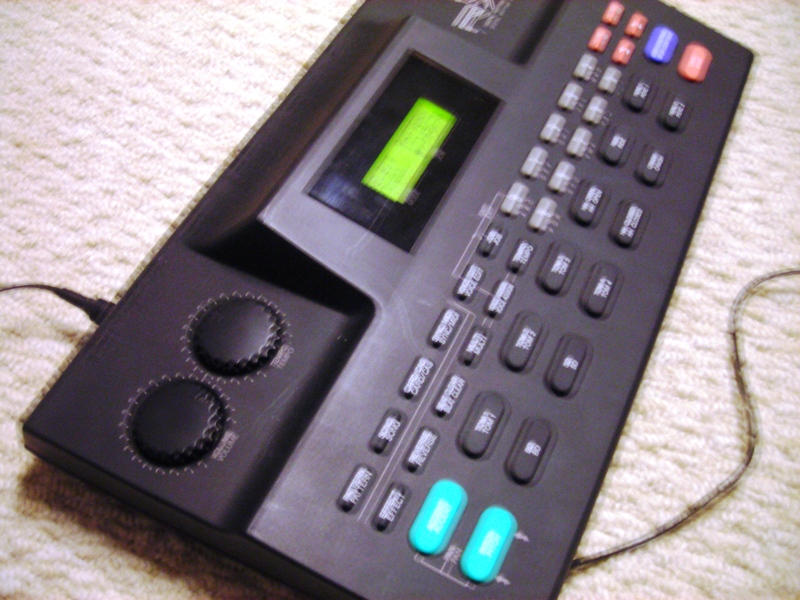

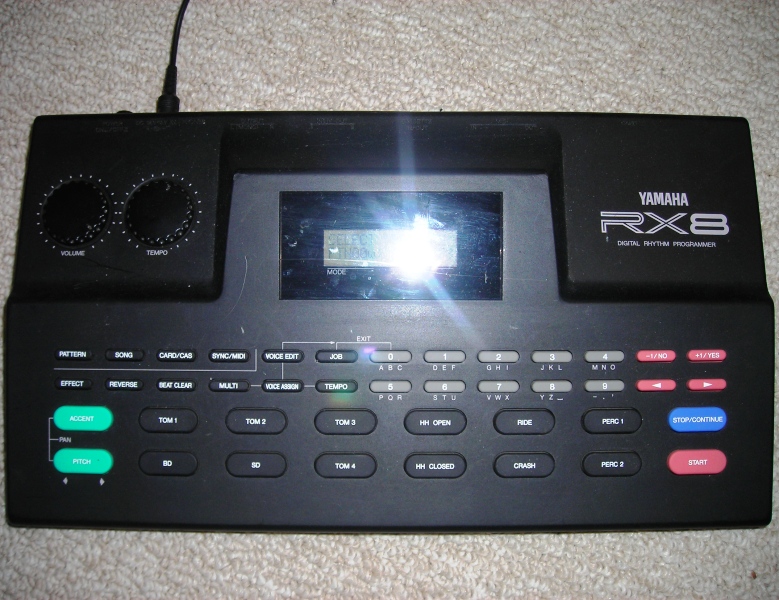

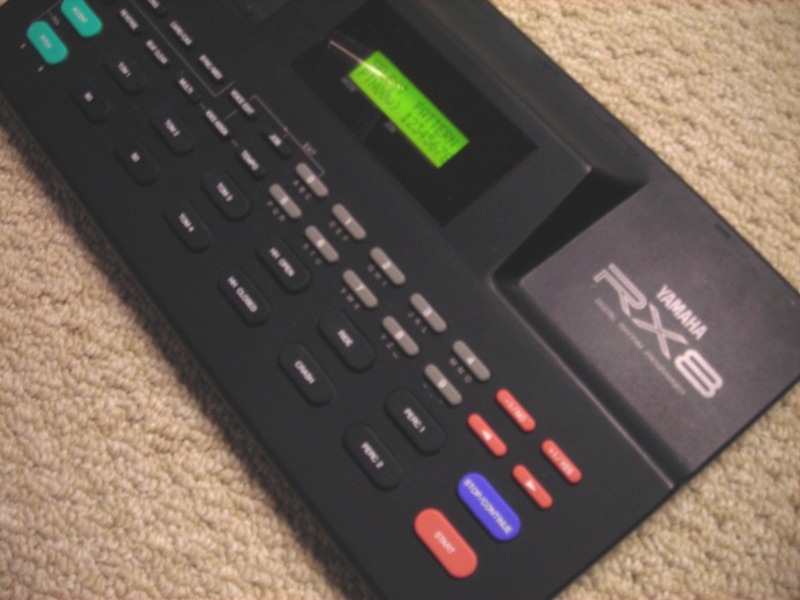

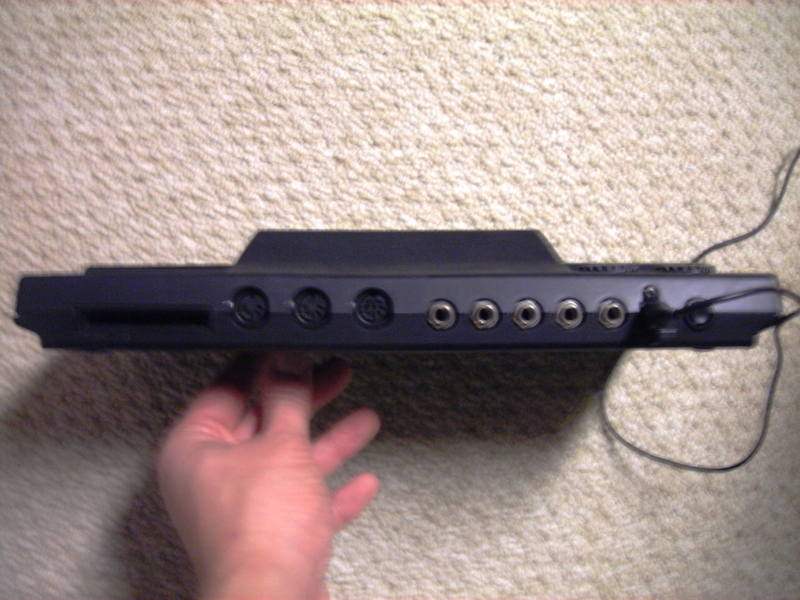

Yamaha RX8 pictures (click on thumbnails to enlarge)


Yamaha RX8 manual

Available at www.yamaha.com

Initialize - Initializing the Yamaha RX8

Power up while keeping the "STOP/CONTINUE", the "-1/NO" and the "+1/YES" buttons pressed at the same time:  the display will show "Initialize R X 8!"  - release the buttons.

You can also load the factory song and pattern demos by pressing the "ACCENT" button while powering up.


Features at a glance
Year of release: 1989
Display: yes, backlit green
Preset Patterns: 100 patterns, 20 songs
Pads: 12
Pads respond to velocity: no
Pads respond to aftertouch no
Sound generation method: PCM
MIDI: in, out
Sound expansion capabilities: only memory via card
Outputs: two stereo sets
Effects: yes
Controls: buttons, two rotary knobs
Pedal controls: no
Tape Sync: no
